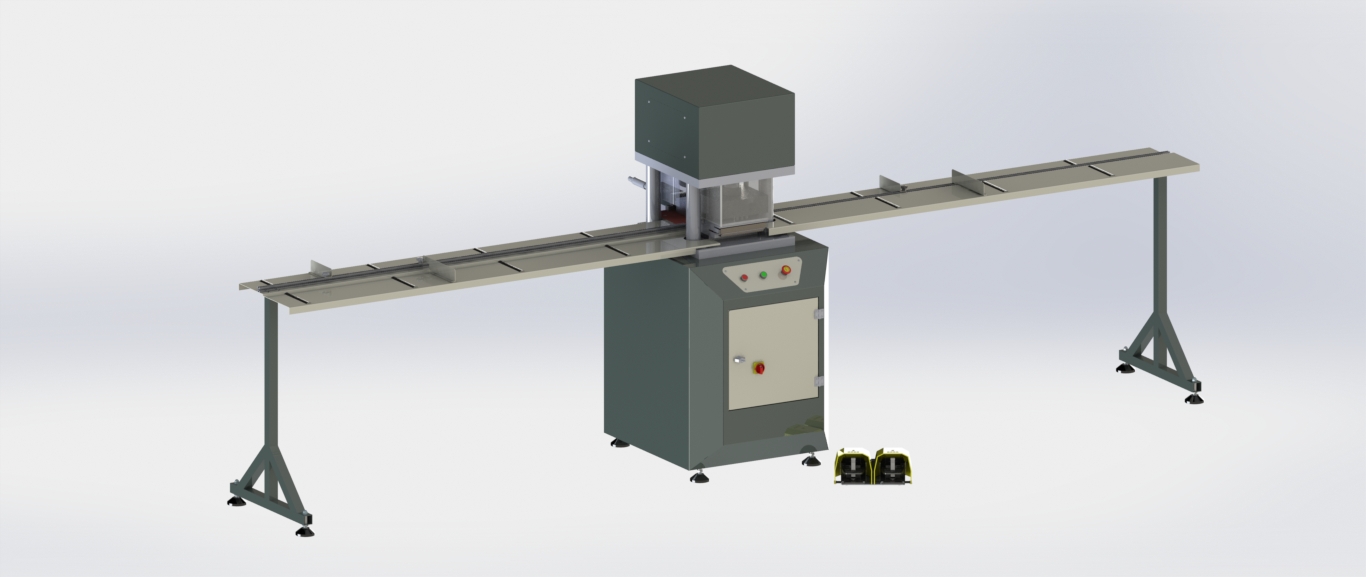

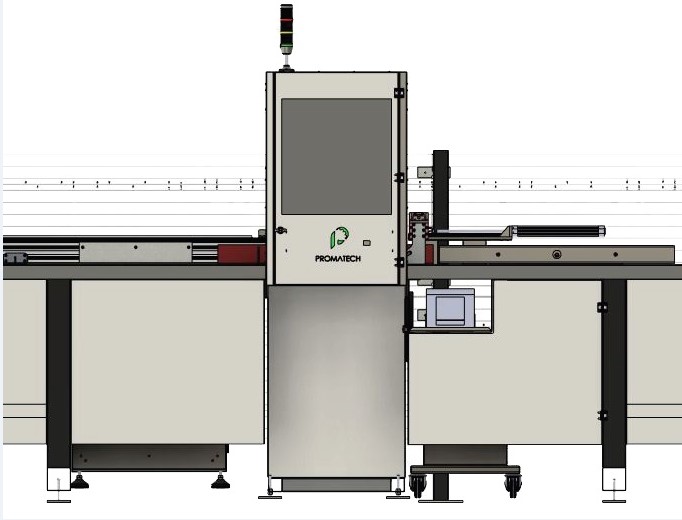

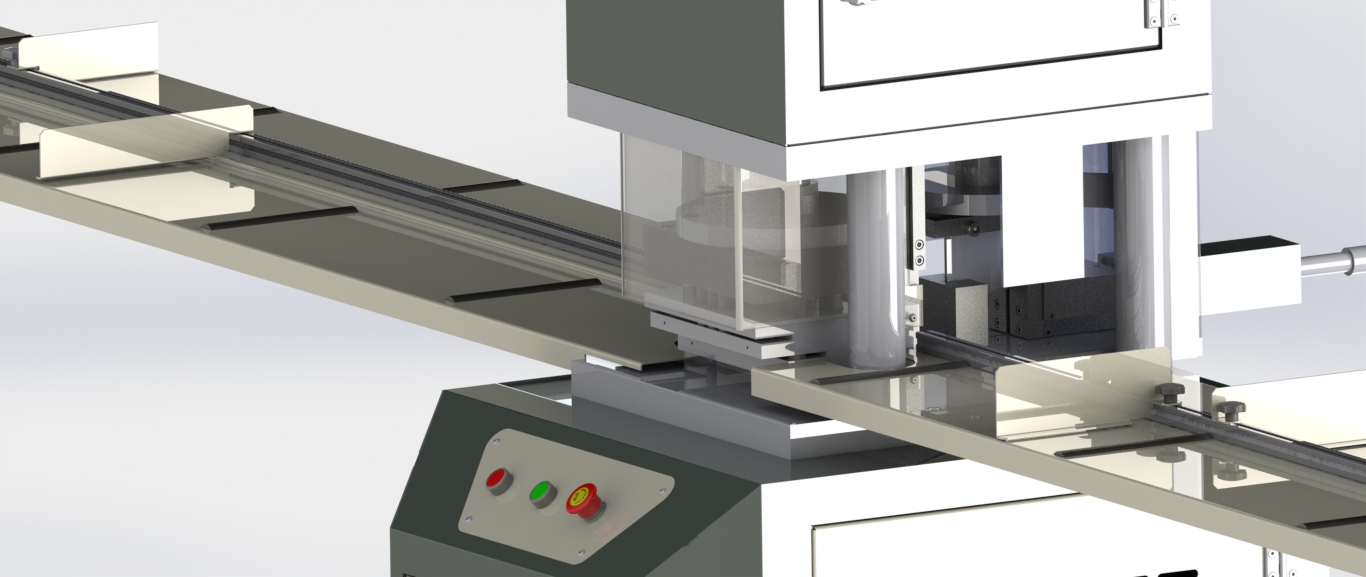

RSC 6500 Reinforcement Sheet Cutting Center
TECHNICAL DATA
* THK Liner rail Bearing, rack and pinion
* 1kw X axis robot and 0.75 kw Z axis Delta Servo Motor
* High-performance and fast communication Delta PLC
* Windows Based Computer Control Unit
* 6-8 Bar Air Pressure system control
* Maximum 6500, Minimum 750 mm Profile Loading Capacity
* Ø350 saw 3kw Saw Blade Motor
* Pemaks Pneumatic Pistons
* Optimization Program Reading Feature in CSV. Format
* Ability to follow 8 bar profiles and cuts on the screen from the sent cutting file
* Optional barcode printer
* 1000x2000x12000mm Dimensions
* Weight 1000 kg
